replicant

D = replicant(FV, kwargs...)::Vector{GMTdataset}

Take a Faces-Vertices dataset describing a 3D body and replicate it N number of times with the option of assigning different colors and scales to each copy. The end result is a single Vector{GMTdataset} with the replicated body.

Args

  • FV: A Faces-Vertices dataset describing a 3D body.

Kwargs

  • replicate: A NamedTuple with one or more of the following fields: centers, a Mx3 Matrix with the centers of the copies; zcolor, a vector of length size(centers, 1), specifying a variable that will be used together with the cmap option to assign a color of each copy (default is the 1:size(centers, 1)); cmap, a GMTcpt object; scales, a scalar or a vector of size(centers, 1), specifying the scale factor of each copy.

  • replicate: A Mx3 Matrix with the centers of the each copy.

  • replicate: A Tuple with a Matrix and a scalar or a vector. The first element is the centers Mx3 matrix and the second is the scale factor (or vector of factors).

  • scales: Scale the copies by this factor, or vector of scales (same length as number of copies)

  • view or perspective: Set the view angle for the replication. The default is 217.5/30. Surface elements that are not visible from this persective are eliminated.

Returns

A Vector{GMTdataset} with the replicated body. Normally, a triangulated surface.

Example

using GMT

FV = sphere();
D  = replicant(FV, replicate=(centers=rand(10,3), scales=0.1));

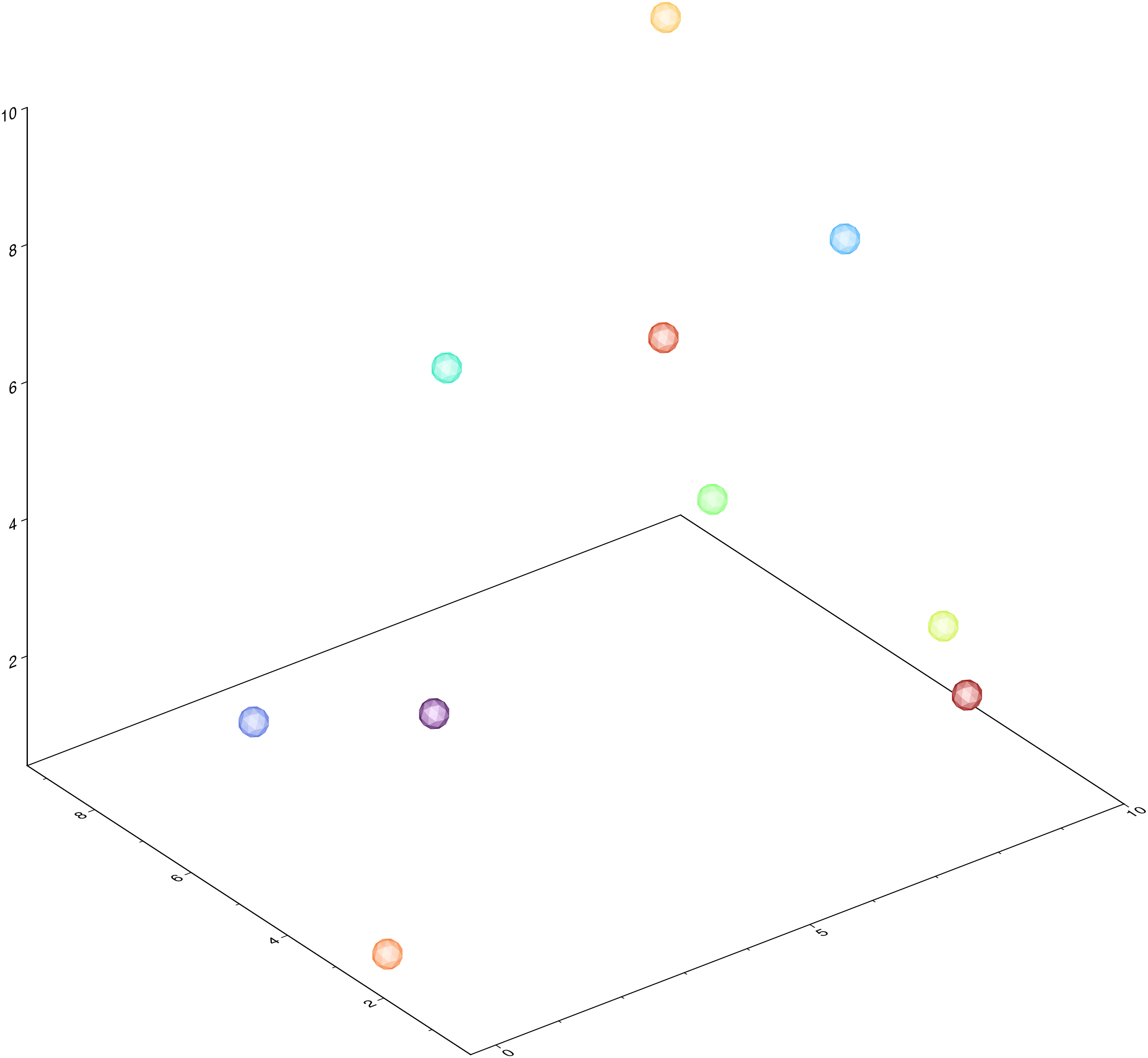

# or, to plot them
viz(FV, replicate=(centers=rand(10,3)*10, scales=0.2))

See Also

extrude, flatfv, fv2fv, grid2tri, revolve, surf2fv
